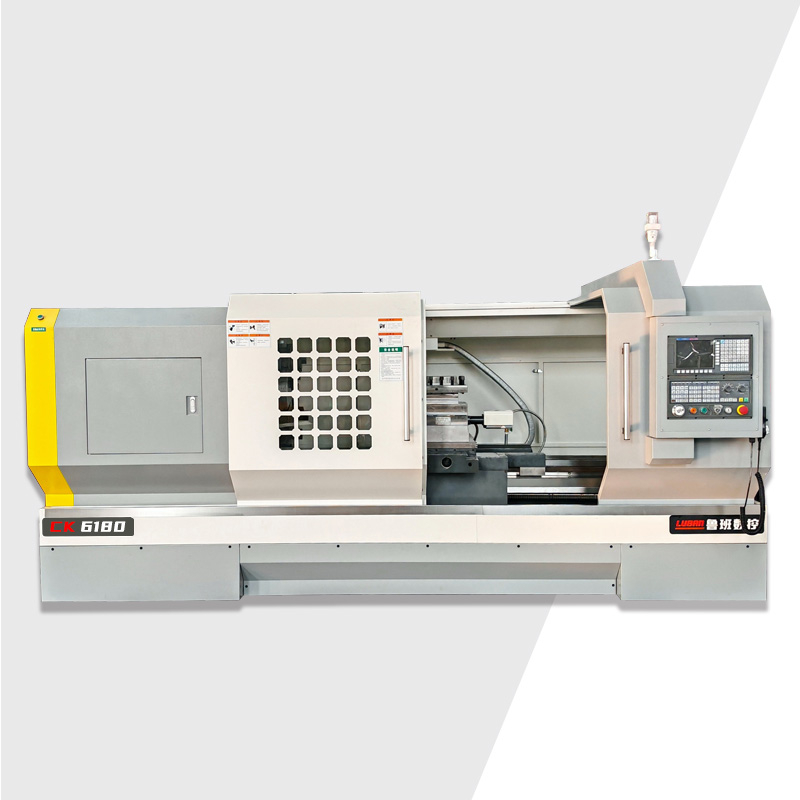

| ITEM | UNIT | CK6180 |
| Max.rotation diameter of the bed | mm | Φ800 |
| Max.rotation diameter of the carriage | mm | Φ480 |
| Max.cutting diameter | nm | 1500 |
| Max.processing length | mm | Φ800 |
| Max.travel of the X-axis | mm | 420/ 1500 |
| Min.displacement unit of the X/Z axis | mm | 0.001 |
| Spindle through hole diameter | mm | Φ105 |
| Spindle series |
| Manual three gears |
| Spindle limit speed | rpm | 110-350/40-125/290-950 |
| Spindle end |
| C-11 |
| Main motor power | KW | 11.0 |
| Frequency converter | KW | 11.0 |
| X/Z axis | Nm | (10/18) |
| Xaxis fast moving speed | m/min | 4/6 |
| Tool holder type |
| Electric vertical |
| Tool bar size | mm |
|
| Tool holder repeat positioning accuracy | mm | ≤0.004 |
| Tailstock sleeve diameter | mm | Φ120 |
| Tailstock sleeve stroke | mm | 250 |
| Tailstock center taper hole |
| MT6 |
| Machine net weight | kg | 5100 |
| Machine overall dimensions(LxWXH) | mm | Based on physical measurement |
