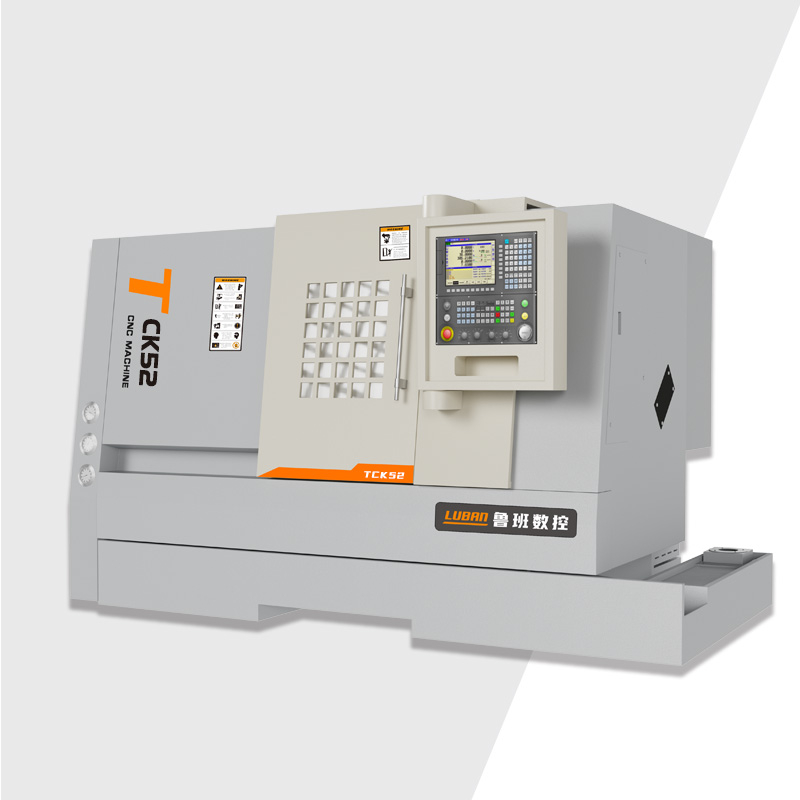

| ITEM | UNIT | TCK52 |
| Max. rotation diameter on the bed | mm | 570 |
| Max. cutting length | mm | 520 |
| Max. cutting diameter | nm | 500 |
| Max. rotation diameter on the slide | mm | 280 |
| Max. cutting diameter | mm | A2-6 |
| Max. rotation diameter on the slide | mm | 66 |
| Spindle end type and code | mm | 52 |
| Spindle hole diameter |
| 50~3500/177 |
| Max. bar diameter | rpm | 15(30 minutes)/11(rated) |
| Spindle speed range/spindle Max. output torque |
| 8-inch hollow |
| 30 minutes/continuous | KW | 30 |
| Chuck diameter | KW | 45/45 |
| X/Z axis fast moving speed | N-m | 3210/4010 |
| X/Z axis travel | m/min | 270/610 |
| Tailstock travel |
| 480 |
| Tailstock spindle taper | mm | 5# |
| Standard tool holder form | mm | Horizontal 8-station |
| Tool square | mm | 25×25 |
| Boring bar diameter | mm | Φ40/Φ32/Φ25/Φ20 |
| Can the tool disc be selected nearby? |
| Can |
| Total weight | kg | 3500 |
| Disc parts | mm | About 300 (including chuck and other machine tool accessories) |
| Shaft parts |
| About 550 (including chuck and other machine tool accessories) |
