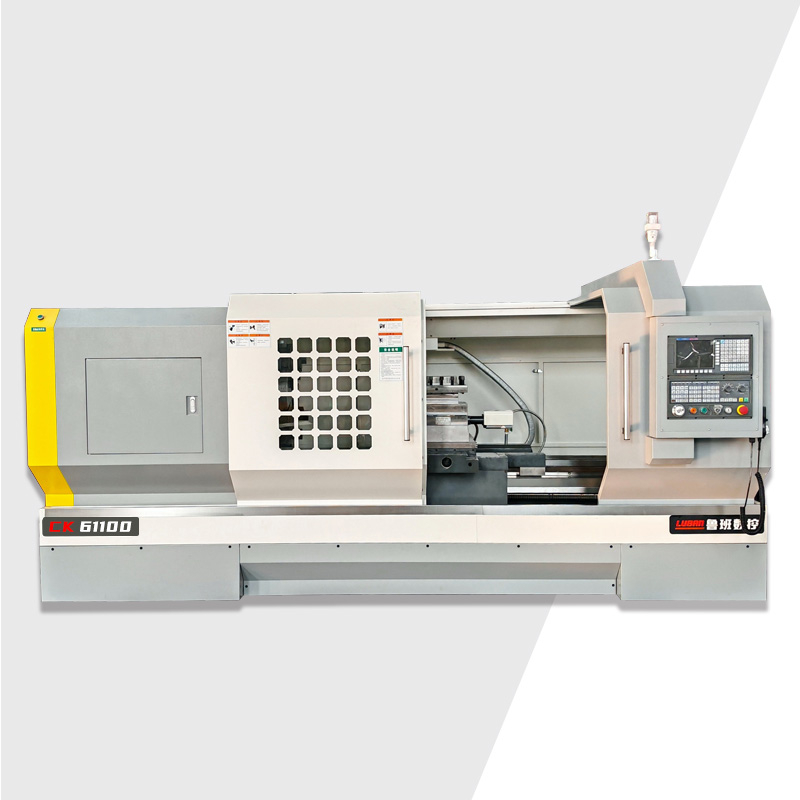

| ITEM | UNIT | CK61100 |
| Max.rotation diameter of the bed | mm | Φ1000 |
| Max.rotation diameter of the carriage | mm | Ф580 |
| Max.cutting diameter | nm | Φ1000 |
| Max.processing length | mm | 1500 |
| Max.travel of the X-axis | mm | 510/1500 |
| Min.displacement unit of the X/Z axis | mm | 0.001 |
| Spindle through hole diameter | mm | Ф105 |
| Spindle series |
| 8-speed continuously variable transmission |
| Spindle limit speed | rpm | 30-84/53-150/125-350/300-835 |
| Spindle end |
|
|
| Main motor power | KW | 15KW |
| Frequency converter | KW | 15KW |
| X/Z axis | Nm | (10/15) |
| Xaxis fast moving speed | m/min | 4/6 |
| Tool holder type |
| 4 electric brackets for work positions |
| Tool bar size | mm | 32*32 |
| Tool holder repeat positioning accuracy | mm | ≤0.004 |
| Tailstock sleeve diameter | mm | Φ145 |
| Tailstock sleeve stroke | mm | 250 |
| Tailstock center taper hole |
| Metric system 100# |
| Machine net weight | kg | kg 6000 |
| Machine overall dimensions(LxWXH) | mm | Based on physical measurement |
