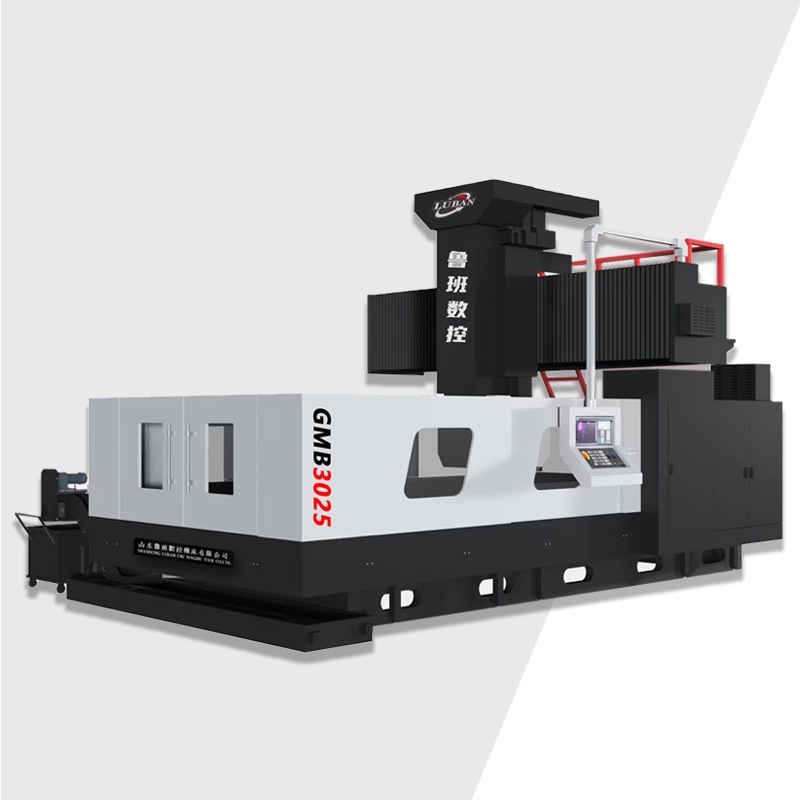

| ITEM | UNIT | GMB3025 |
| Workbench size | mm | 2300×3000 |
| Workbench load | kg | 8000 |
| T-slot width | mm | 11-28×200 |
| XV/Z axis travel | mm | 3000/2500 (sub-stroke 3050)/1250 |
| Gantry too wide | mm | 2500 |
| Gantry too high | mm |
|
| Distance from spindle end to workbench | mm | 250～1500 |
| Taper hole model |
| BT50-200 |
| Speed range | rpm | 10-6000 |
| Cutting feed speed range | m/min | 8 |
| XN/Zaxis fast movement | m/min | .12/12/8 |
| XY/Z axis motor |
| Japan Mitsubishi M80B |
| Nm | 703 (reducer)/453/453B |
| Three-axis guide rail specifications(XM/Z) | KW | DN18.5 |
|
| X/Y axis 55# roller linear rail (X axis is 10 slider) |
| Three-axis lead screw specifications(XM/Z) |
| Z axis rectangular rail |
| System Configuration |
| 8020/6316/6316 |
| Machine weight | mm | Subject to actual measurement |
| Machine dimensions | T | About 32 |
