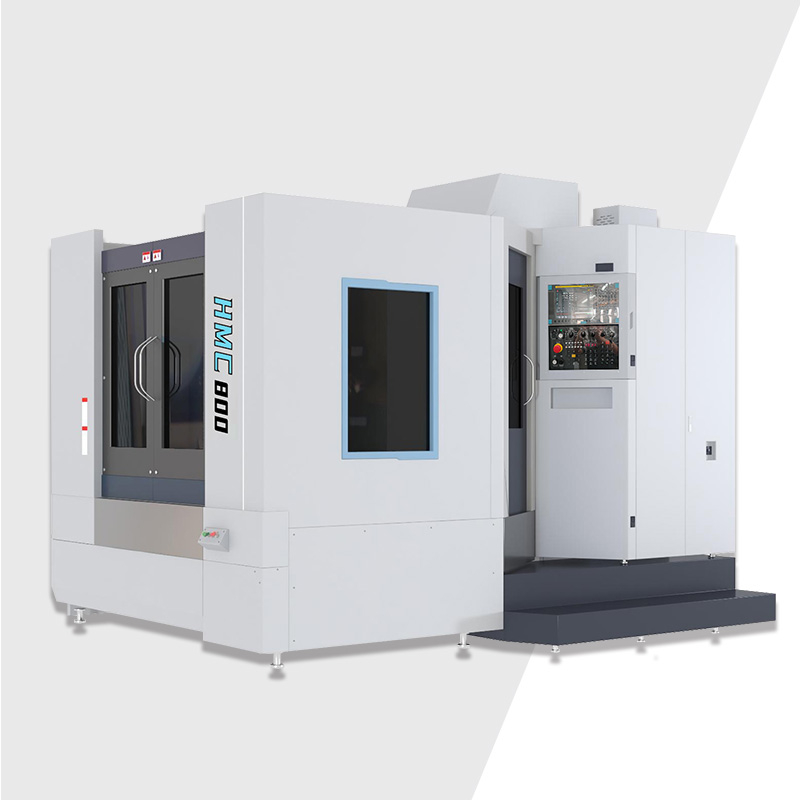

HMC800
LUBAN
PARAMETER:
| ITEM | UNIT | HMC800 |
| X/Y/z axis travel | mm | 1300/900/950 |
| Spindle center to worktable surface | mm | -30-870 |
| Spindle nose to worktable center | mm | 150-1100 |
| Worktable area | mm | 800×800 |
| Maximum workpiece size | mm | 1800 |
| Worktable load distribution | kg | 2800 |
| Maximum workpiece height | mm | 900 |
| Minimum worktable split angle | 0 | 1°(Optional one thousandth degree) |
| T-slot (number of slots x slot width x spacing) | mm | 7x18*100 |
| Maximum spindle speed | RPM | 6000 |
| Maximum processing size(rotation diameter) | mm | 1800 |
| Spindle taper | BT | BT50-210 |
| Maximum spindle cutting torque (standard) | N-m | 143 |
| Spindle motor power (rated/maximum) | kw | 15-22.5 |
| Three-axis rapid displacement speed (x/y/z) | m/min | 20/20/20 |
| Minimum setting unit of machine tool | 0.001 | |
| Tool holder type | BT | BT-50 |
| Number of tools | 30 | |
| Maximum tool extension diameter/length/weight | Φ112mm/350mm/25kg | |
| Maximum tool diameter (no adjacent tools) | mm | 200 |
| Tool selection method | Optional | |
| Tool change time | S | 4.75 |
| Positioning accuracy (x/y/z) | mm | VDI 0.008 |
| Repeat positioning accuracy(x/y/z) | mm | vDI0.005 |
| Rotary table indexing accuracy | 99 | ±4”sec3 |
| Repeat indexing accuracy of rotary work | 99 | ±2"sec1 |
| Air pressure | Kg/bar | 6-8 |
| Cutting fluid tank volume | L | 300 |
| Power demand | KVA | 60 |
| Four-axis motor model | N | 35*35*35N*23N |
| Three-axis lead screw/wire gauge model | R5010; RGH55 | |
| Machine tool weight | kg | About14000 |
| Overall dimensions | mm | Based on physical measurement |
