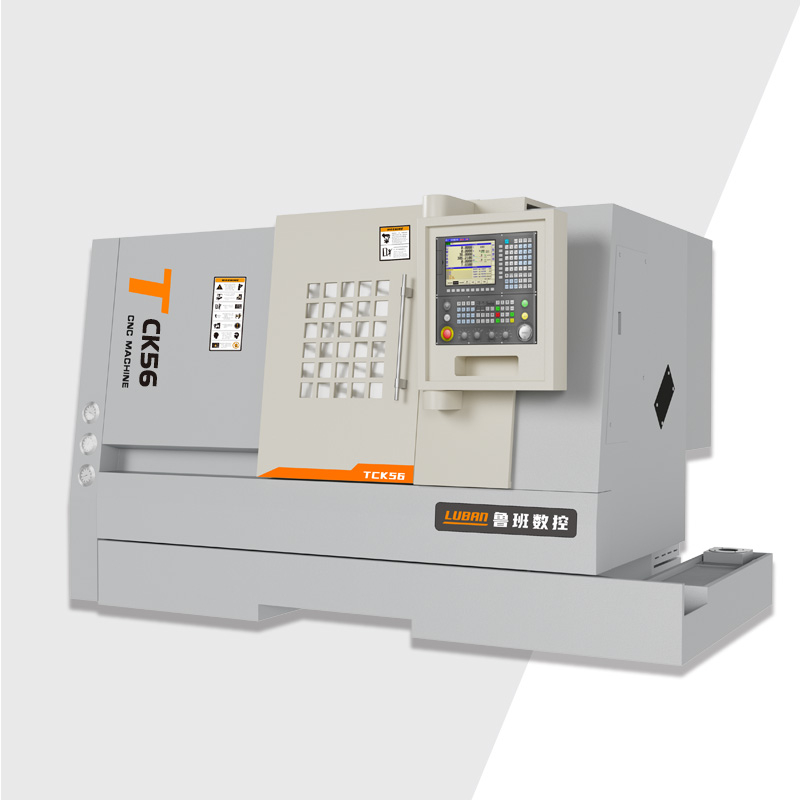

| ITEM | UNIT | TCK56 |
| Max. rotation diameter on the bed | mm | 560 |
| Max. cutting length | mm | 500 |
| Max. cutting diameter | nm | Disc Φ400, shaft Φ350 |
| Max. rotation diameter on the slide | mm | Φ350 |
| Max. cutting diameter | mm | Disc Φ300, shaft Φ280 |
| Max. rotation diameter on the slide | mm | Φ280 |
| Spindle end type and code | mm | A2-6 |
| Spindle hole diameter |
| Φ65 |
| Max. bar diameter | rpm | Φ50 |
| Spindle speed range/spindle Max. output torque |
| 50~3500/177 |
| 30 minutes/continuous | KW | 15/11 |
| Chuck diameter | KW | 8 |
| X/Z axis fast moving speed | N-m | 30/30 |
| X/Z axis travel | m/min | 200/560 |
| Tailstock travel |
| 450 |
| Tailstock spindle taper | mm | MT5# |
| Standard tool holder form | mm | Horizontal 8-station |
| Tool square | mm | 25×25 |
| Boring bar diameter | mm | Φ40/Φ32/Φ25/Φ20 |
| Can the tool disc be selected nearby? |
| Can |
| Total weight | kg | About 3800 |
| Disc parts | mm | About 200 (including chuck and other machine tool accessories) |
| Shaft parts |
| About 500 (including chuck and other machine tool accessories) |
