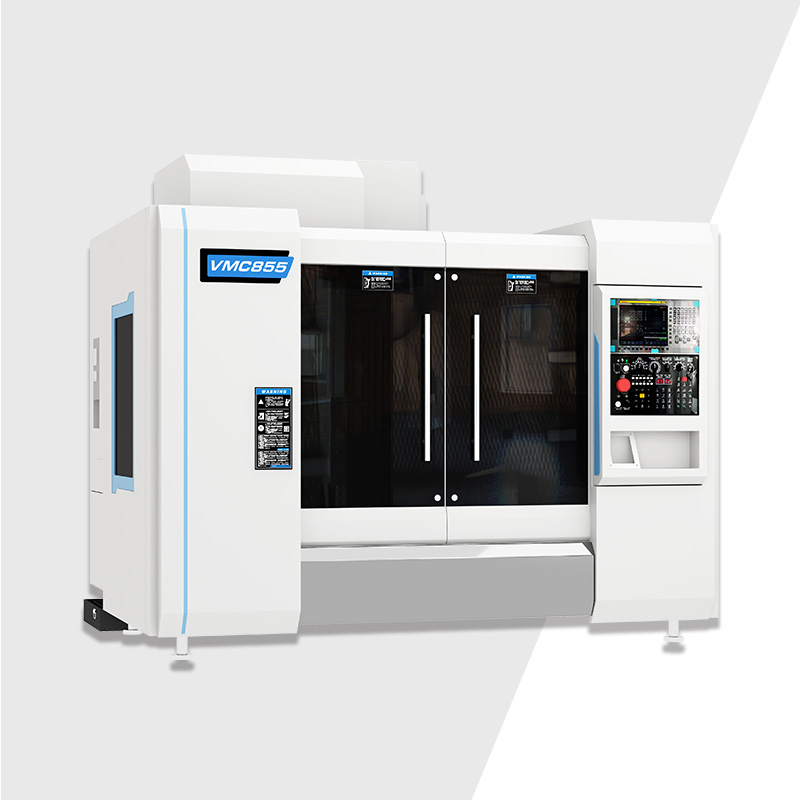

| ITEM | UNIT | VMC855 |
| Table size | mm | 1000*550 |
| Max. allowable load | kg | 600 |
| T-slot | mm | 5-18*90 |
| X/Y/Z travel | mm | 800/550/550 |
| Distance from spindle end to table | mm | 120-670 |
| Distance from spindle center to column | mm | 590 |
| Spindle taper |
| BT40-150 |
| Spindle speed | R/min | 8000 |
| Spindle motor power | kW | 11-15 |
| X-axis rapid traverse feed | M/min | 48 |
| Y-axis rapid traverse feed | M/min | 48 |
| Z-axis rapid traverse feed | M/min | 48 |
| Positioning accuracy | mm | ±0.005 |
| Repeat positioning accuracy | mm | ±0.003/300 |
| Mini. positioning accuracy | mm | ±0.001 |
| Machine weight | KG | About5200 |
| Machine dimensions | mm | Based on physical measurement |
