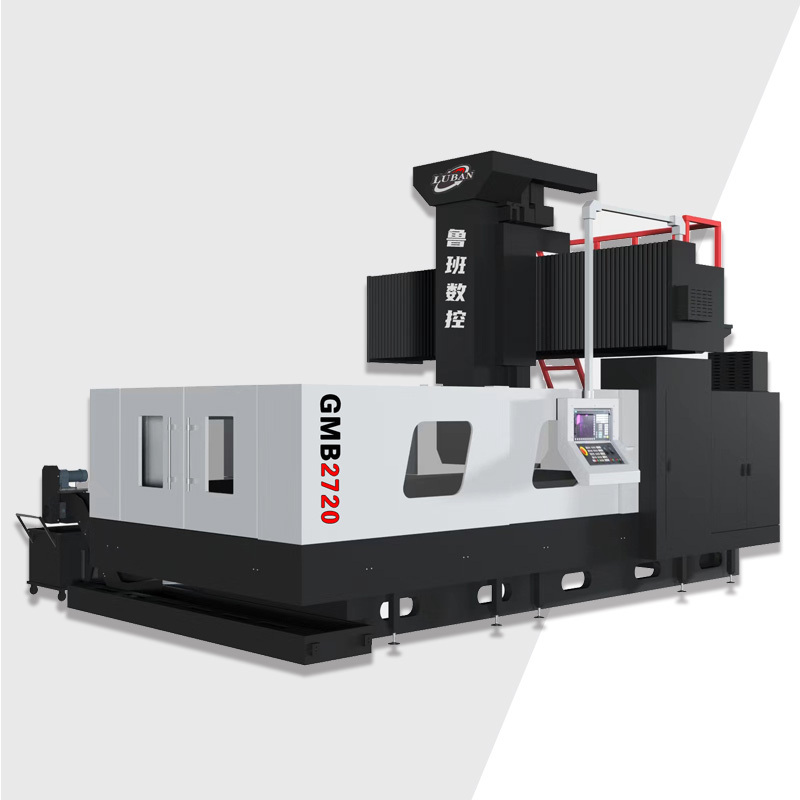

| ITEM | UNIT | GMB2720 |
| Workbench size | mm | 2500*1800 |
| Workbench load | kg | 8000 |
| T-slot width | mm | 9-22×190 |
| XV/Z axis travel | mm | 2700/2000/1000 |
| Gantry too wide | mm | 2000 |
| Gantry too high | mm | 1300 |
| Distance from spindle end to workbench | mm | 180-1180 |
| Taper hole model |
| BT50-190 |
| Speed range | rpm | 10-6000 |
| Cutting feed speed range | m/min | 10 |
| XN/Zaxis fast movement | m/min | 12/12/8 |
| System configuration |
| MitsubishiM80B |
| XY/Z axis motor | Nm | 703(Reducer)/453/453 |
| Spindle | KW | DN18.5 |
| Three-axis guide rail specifications(XM/Z) |
| X/Y axis 55 # roller track (X axis has 10 sliders) |
|
| Z-axis rectangular guide rail |
| Three-axis lead screw specifications(XM/Z) |
| 8020/5010/5010 |
| Machine dimensions | mm | Based on physical measurement |
| Machine weight | T | About23 |
