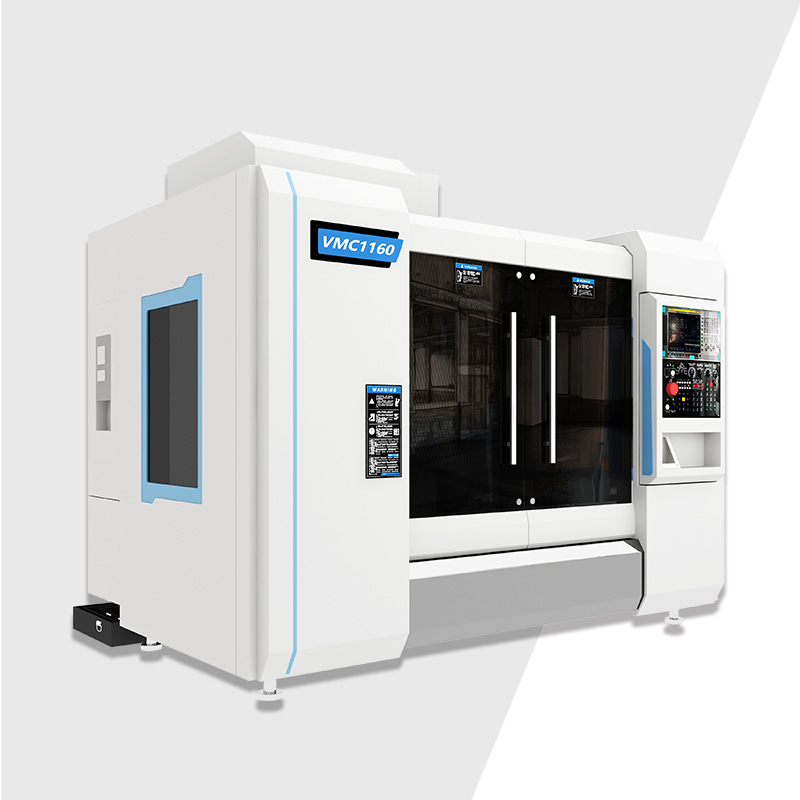

| ITEM | UNIT | VMC1160 |
| Table size | mm | 1200*600 |
| Max. allowable load | kg | 800 |
| T-slot | mm | 5-18*100 |
| X/Y/Z travel | mm | 1100/600/600 |
| Distance from spindle end to table | mm | 120-720 |
| Distance from spindle center to column | mm | 650 |
| Spindle taper |
| BT40-150 |
| Spindle speed | R/min | 8000 |
| Spindle motor power | kW | 11-15 |
| X-axis rapid traverse feed | M/min | 36 |
| Y-axis rapid traverse feed | M/min | 36 |
| Z-axis rapid traverse feed | M/min | 36 |
| Positioning accuracy | mm | ±0.005 |
| Repeat positioning accuracy | mm | ±0.003/300 |
| Mini. positioning accuracy | mm | ±0.001 |
| Machine weight | KG | About6200 |
| Machine dimensions | mm | Based on physical measurement |
