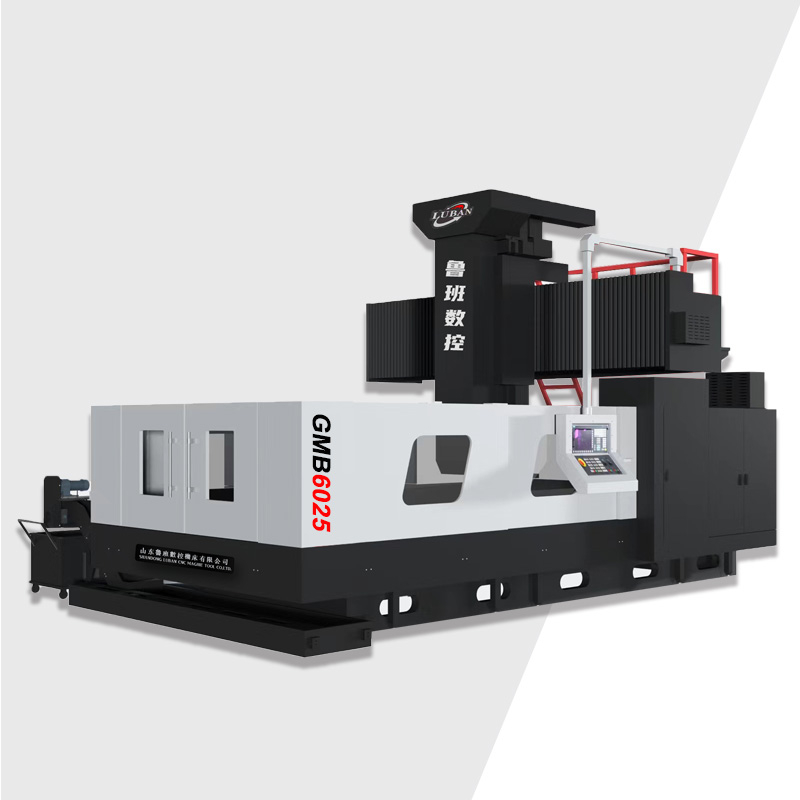

| ITEM | UNIT | GMB6025 |
| Workbench size | mm | 6000*2300 |
| Workbench load | kg | 20000 |
| T-slot width | mm | 11-28×200 |
| XV/Z axis travel | mm | 6000/2700/1000 |
| Gantry too wide | mm | 2700 |
| Gantry too high | mm | 1400 |
| Distance from spindle end | mm | 280-1280 |
| to workbench |
| BT50-200 |
| Taper hole model | rpm | 10-6000 |
| Speed range | m/min | 7 |
| Cutting feed speed range | m/min | 2010/10/6 |
| XN/Zaxis fast movement |
| 1 pack of Japanese Fanuc |
| System Configuration | Nm | α40/α40/α30b |
| XYZ axis motor | KW | Ail22 (Fanuc) |
|
| X/Y axis 55# roller linear rail
(X axis is 18 slider) |
| Three-axis guide rail |
| Z axis rectangular rail |
| specifications(XM/Z) |
| 10020/6316/5010 |
Three-axis lead screw
specifications(XM/Z) | mm | Subject to actual measurement |
| Machine weight | T | About 60 |
