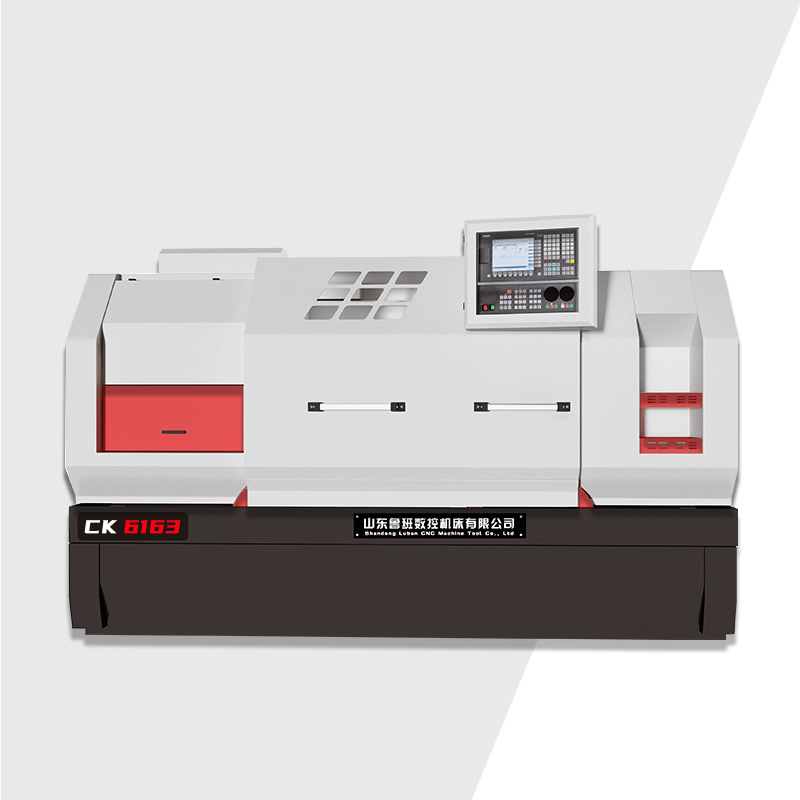

| ITEM | UNIT | CK6163 |
| Max. rotation diameter of the bed | mm | Φ630 |
| Max. rotation diameter of the carriage | mm | Φ375 |
| Max. cutting diameter | nm | Φ630 |
| Max. processing length | mm | 850 |
| Max. travel of the X-axis | mm | 295/1000 |
| Min.displacement unit of the X/Z axis | mm | 0.001 |
| Spindle through hole diameter | mm | Φ82 |
| Spindle series |
| Three gears (frequency conversion within gears) |
| Spindle limit speed | rpm | 12-1600 |
| Spindle end |
| A2-8 |
| Main motor power | KW | 7.5 |
| Frequency converter | KW | 7.5 |
| X/Z axis | Nm | 5/7.5 |
| X axis fast moving speed | m/min | 6/8 |
| Tool holder type |
| 4-station electric knife holder |
| Tool bar size | mm | 25*25 |
| Tool holder repeat positioning accuracy | mm | ≤0.004 |
| Tailstock sleeve diameter | mm | Φ75 |
| Tailstock sleeve stroke | mm | 130 |
| Tailstock center taper hole |
| Mo style 5# |
| Machine net weight | kg | About2800 |
| Machine overall dimensions (LxWxH) | mm | Based on physical measurement |
