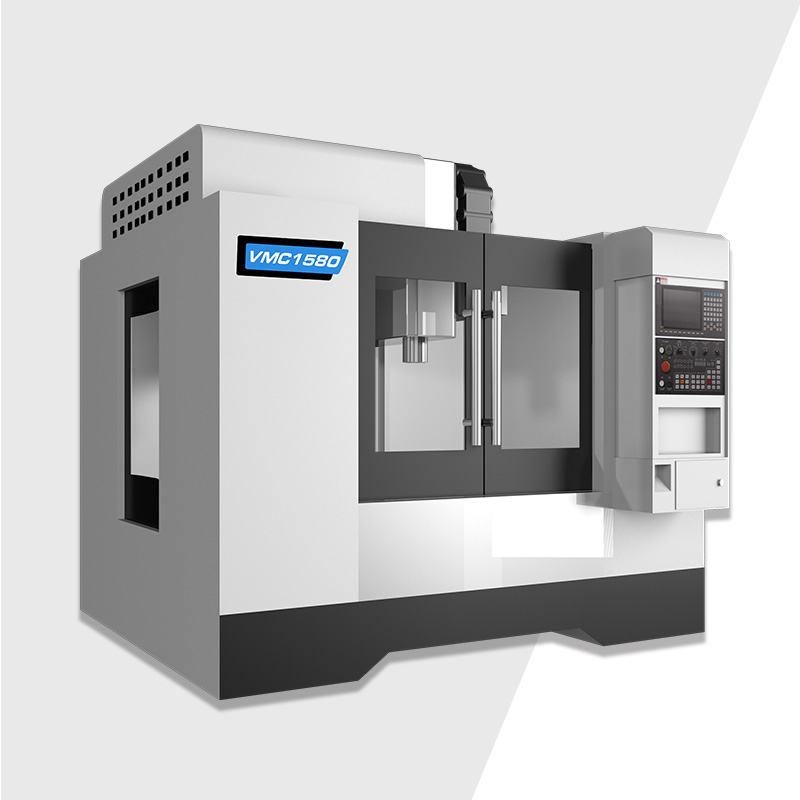

| ITEM | UNIT | VMC1580 |
| Table size | mm | 1600×800 |
| Max. allowable load | kg | 1500 |
| T-slot | mm | 5-18 |
| X/Y/Z travel | mm | 1500/800/700 |
| Distance from spindle end to table | mm | 155-855 |
| Distance from spindle center to column | mm | 855 |
| Spindle taper |
| BT50-155 |
| Spindle speed | R/min | 6000 |
| Spindle motor power | kW | 15-22.5 |
| X-axis rapid traverse feed | M/min | 24 |
| Y-axis rapid traverse feed | M/min | 24 |
| Z-axis rapid traverse feed | M/min | 20 |
| Positioning accuracy | mm | ±0.008 |
| Repeat positioning accuracy | mm | ±0.006/300 |
| Mini. positioning accuracy | mm | ±0.001 |
| Machine weight | KG | About12000 |
| Machine dimensions | mm | Based on physical measurement |
