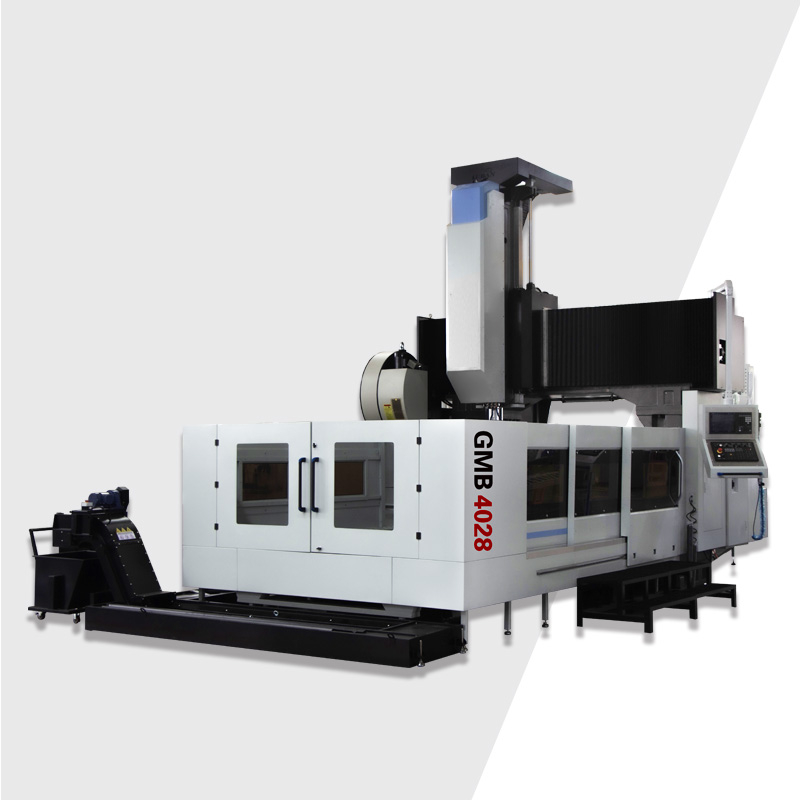

| ITEM | UNIT | GMB4028 |
| Workbench size | mm | 4000*2500 |
| Workbench load | kg | 13000 |
| T-slot width | mm | 11-28×200 |
| XV/Z axis travel | mm | 4200/2000/10000 |
| Gantry too wide | mm | 2800 |
| Gantry too high | mm | 1700 |
| Distance from spindle end | mm | 250-1500 |
| to workbench |
| BT50-200 |
| Taper hole model | rpm | 10-6000 |
| Speed range | m/min | 8 |
| Cutting feed speed range | m/min | 2012/2/8 |
| XN/Zaxis fast movement |
| Japan Mitsubishi M80B |
| System Configuration | Nm | 703 (reducer)/703/703 |
| XYZ axis motor | KW | 15-22.5 |
|
| X-axis 55 axis 3 guide) roller linear rail
(X axis is 10 slider) |
| Three-axis guide rail |
| Z axis rectangular guide |
| specifications(XM/Z) |
| 8020/6316/6316 |
Three-axis lead screw
specifications(XM/Z) | mm | Subject to actual measurement |
| Machine weight | T | About 36.5 |
