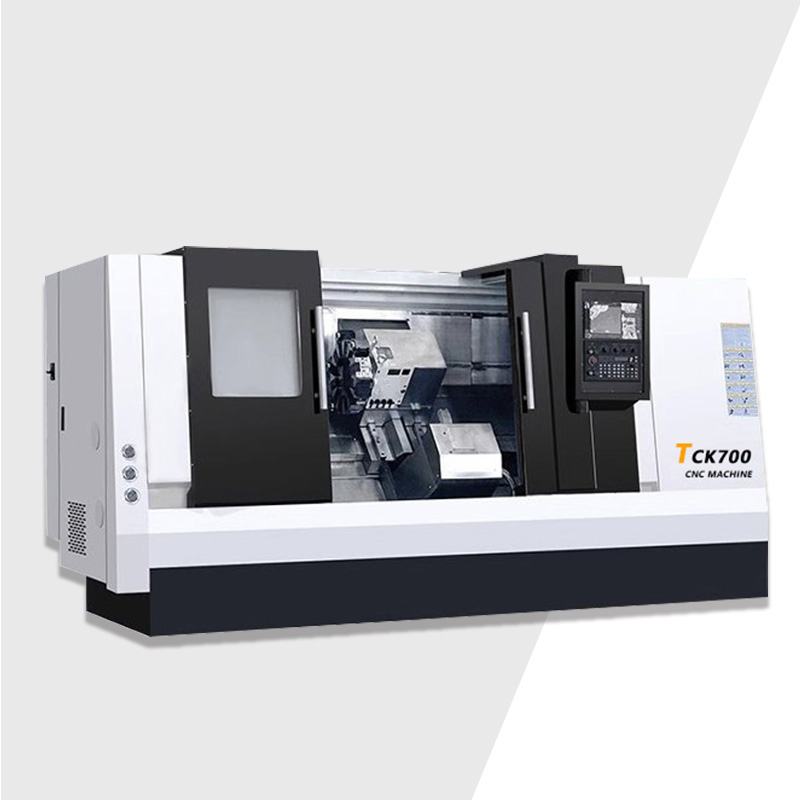

| ITEM | UNIT | TCK700 |
| Maximum rotation diameter | mm | Φ700 |
| Maximum rotation diameter on the bed | mm | Φ500 |
| Maximum processing length | mm | 1500/2000/3000 |
| Spindle head type | mm | A2-11/8 |
| Motor power | kW | 15/22(servo) |
| Spindle speed | r/min | 2500 |
| Spindle through hole diameter | mm | Φ88/105/130 |
| Bed angle | DEG | 45° |
| Xstroke | mm | 360 |
| XZ rapid moving speed | m/min | 15/24 |
| XZ servo motor torque | N.m | 22/22 |
| Tool holder type | / | 12T hydraulic position（Optional power turret） |
| Tool size | mm | 32×32/050 |
| Chuck | mm | 10"/12"/15" |
| Repeat positioning accuracy | mm | ±0.003 |
| Tail sleeve diameter/stroke | mm | Φ150/150 internal rotation |
| Sleeve taper hole | MT | 5/6 |
| Size | m | 4.6/5.8/6.5×2.2×23 |
| Load | T | 8/10/11.6 |
