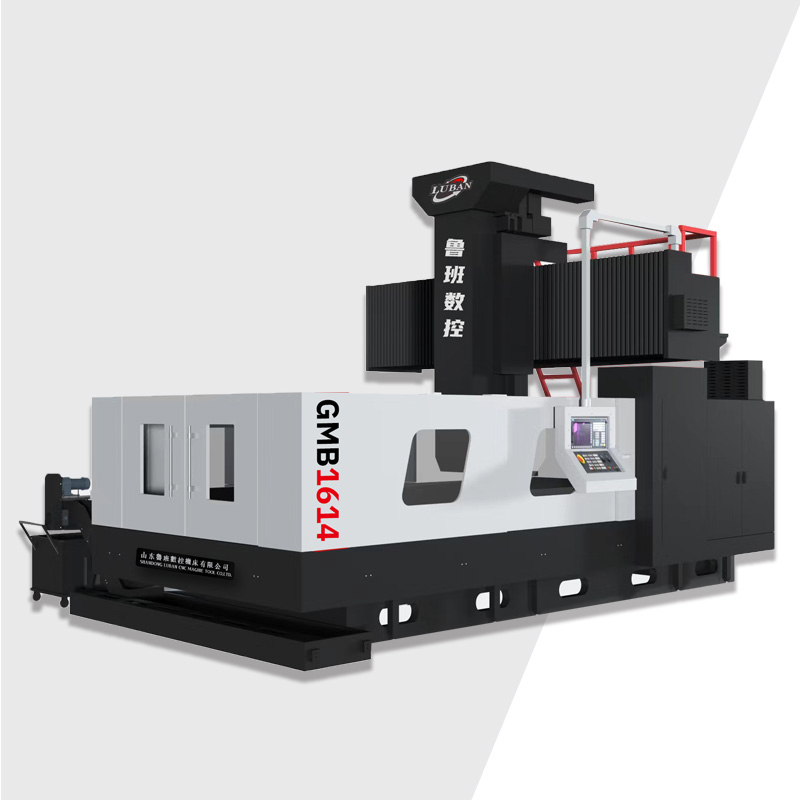

| ITEM | UNIT | GMB1614 |
| Workbench size | mm | 1700*1200 |
| Workbench load | kg | 3000 |
| T-slot width | mm | 7*22*170 |
| XV/Z axis travel | mm | 1600/1500/800 |
| Gantry too wide | mm | 1500 |
| Gantry too high | mm | 1030 |
| Distance from spindle end to workbench | mm | 150-950 |
| Taper hole model |
| BT50 |
| Speed range | rpm | 50-6000 |
| Cutting feed speed range | m/min | 10 |
| XN/Zaxis fast movement | m/min | 15/15/10 |
| System configuration |
| SYNTEC |
| XY/Z axis motor | Nm | 35/28/28 |
| Spindle | KW | 15-18.5 |
| Three-axis guide rail specifications(XM/Z) |
| XY axis 55 # roller track |
|
| Z-axis rectangular guide rail |
| Three-axis lead screw specifications(XM/Z) |
| 5010/5010/5010 |
| Machine dimensions | mm | Based on physical measurement |
| Machine weight | T | About14.5 |
